2000L 20BBL Stainless Steel Winery Equipment Jacked Winery Fermentation Tank

Share to:
wechat sharing button
facebook sharing button
twitter sharing button
line sharing button
linkedin sharing button
pinterest sharing button
sharethis sharing button
Winery Fermentation tank are widely use for wine brewing and fermentation ,all the tank with high welding and polishing quality
Availability:

Product Description

Specification list:

1. Stainless steel 304 or 316

2.Multi use for fermentation, storage, blending, bottling

3.Dimpled cooling/heating jackets

4. Gusseted 12″ temperature well, sample port, racking port

5.Sump-style drain

6.Sloping bottom

7. Pomace door

8.Coolant outlet and coolant inlet;

9. Options: Stainless steel legs with adjustable foot pads or anchor pads for concrete pedestals, drain screen, racking door, truncated top for easy access to door.

 wine making equipment

Wine Fermenters Parameter
No. Name Tank type Material Capacity Standard size Material thickness Bottom Structure Cooling/heating jacket
1 Wine fermenter Standard/tapered SUS304/316 1000L φ1100*2200 t2.0mm Sloping/conical Dimpled/coiled
2 Wine fermenter Standard/tapered SUS304/316 1500L φ1300*2200 t2.0mm Sloping/conical Dimpled/coiled
3 Wine fermenter Standard/tapered SUS304/316 2000L φ1300*2600 t2.0mm Sloping/conical Dimpled/coiled
4 Wine fermenter Standard/tapered SUS304/316 3000L φ1600*2600 t2.0mm Sloping/conical Dimpled/coiled
5 Wine fermenter Standard/tapered SUS304/316 5000L φ1600*3500 t2.5mm Sloping/conical Dimpled/coiled
6 Wine fermenter Standard/tapered SUS304/316 5000L φ1900*3000 t2.5mm Sloping/conical Dimpled/coiled
7 Wine fermenter Standard/tapered SUS304/316 6000L φ1770*3700 t2.5mm Sloping/conical Dimpled/coiled
8 Wine fermenter Standard/tapered SUS304/316 7500L φ2000*3700 t2.5mm Sloping/conical Dimpled/coiled
9 Wine fermenter Standard/tapered SUS304/316 8000L φ2050*3700 t2.5mm Sloping/conical Dimpled/coiled
10 Wine fermenter Standard/tapered SUS304/316 100HL φ2100*4400 t2.5mm/3mm Sloping/conical Dimpled/coiled
11 Wine fermenter Standard/tapered SUS304/316 125HL φ2100*4900 t2.5mm/3mm Sloping/conical Dimpled/coiled
12 Wine fermenter Standard/tapered SUS304/316 150HL φ2050*3703 t2.5mm/3mm Sloping/conical Dimpled/coiled
Note: Wine tanks can be customized by what you need.

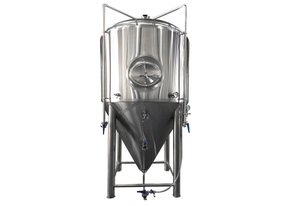

Detail Photos

wine fermentation vessel

Product Advantage

All Construction is from SUS 304 food grade stainless steel, all pipes are SUS304
All signs & wording in English
All tanks to be supplied with Data Plates including Test Data & Serial Number
All tanks will be tested and inspected in the NDT room after construction & Quality Control Checks
All jackets will be tested using water pressure testing, testing pressure: 0.4Mpa (4 Bar) & working pressure:0.2Mpa (2Bar)
All tanks will be pressure tested for 48hours before leaving the ZPET factory;
All the welds are full TIG welded by water spray method to ensure uniform weld pattern with full pickling & passivation
All tanks are mirror polishing inside, to be Ra 0.4um.
All Gaskets are manufactured with EPDM

Trading Terms

Payment Term:

T/T transfer, 40% advance payment in order to start production,
T/T transfer 60% before the equipment is shipped.
Alibaba trader assurance is available to guarantee your payment safety.


Delivery Term:

The manufacturing time is 30 – 45 working days, and will be commenced as soon the initial 40% deposit is received in ZPET account and technical drawings are signed & confirmed by the client
The technical files, layouts, drawings and all other technical confirmation time(s) shall not be included in the manufacturing time.

Production will not start until all drawings, technical files or layouts are confirmed & signed by appropriate party. This can lead to delays in production and / or delivery time if not completed.
