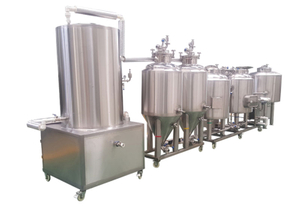

This skid home brewing system is designed for craft brewing amateurs who has been experienced in simple home brewing and would like to be close to commercial brewing. This system includes all functions which a microbrewery system standardly have. Whole mashing procedure happens in one tank with a filter drum inside. Two fermentation tanks are all insulated and jacketed with temperature controller for each. The glycol cooling system has one small ice water tank and a mini refrigerator. All the system seats on a skid with heavy wheels. It is very easily movable. This integrated brewing system is able to take on most of the real brewing in a micro brewery. It is suitable for some enthusiastic brewing fans or family party or some brewery labs or recipe test.
1x 50L mash/lauter boiling whirlpool combined tank
1x one plate heat exchanger for wort cooling
1x centrifugal type wort pump
2x 50L fermentation tank with cooling jacket and insulation
1x glycol water tank with refrigerator for cooling fermentation tanks
1x controlling panel for all flow and temperature control, digital panel or plc optional
All tanks interior shell 2mm, cladding shell 1.5mm, SUS304;
Power request specification
Heating Elements: 6kw; 220v/50,60Hz-1p;
Wort pump:0.55kw; 220v/50,60Hz-1p;
Fumigation-free veneer crates packing; All system is packed in one veneer crate.
Net Weight: 280kg
Dimension: 2100 x800 x1750mm
All Construction is from SUS 304 food grade stainless steel, all pipes are SUS304
All signs & wording in English
All tanks to be supplied with Data Plates including Test Data & Serial Number
All tanks will be tested and inspected in the NDT room after construction & Quality Control Checks
All jackets will be tested using water pressure testing, testing pressure: 0.4Mpa (4 Bar) & working pressure:0.2Mpa (2Bar)
All tanks will be pressure tested for 48hours before leaving the ZPET factory;
All the welds are full TIG welded by water spray method to ensure uniform weld pattern with full pickling & passivation
All tanks are mirror polishing inside, to be Ra 0.4um.
All Gaskets are manufactured with EPDM
T/T transfer, 40% advance payment in order to start production,
T/T transfer 60% before the equipment is shipped.
Alibaba trader assurance is available to guarantee your payment safety.
The manufacturing time is 30 – 45 working days, and will be commenced as soon the initial 40% deposit is received in ZPET account and technical drawings are signed & confirmed by the client
The technical files, layouts, drawings and all other technical confirmation time(s) shall not be included in the manufacturing time.
Production will not start until all drawings, technical files or layouts are confirmed & signed by appropriate party. This can lead to delays in production and / or delivery time if not completed.
